S4 class Kobe

Slots can be accessed and assigned using functions corresponding to slot name. See See Also section below.

Details

Objects of class Kobe are created with Kobe()

Performance Indicators

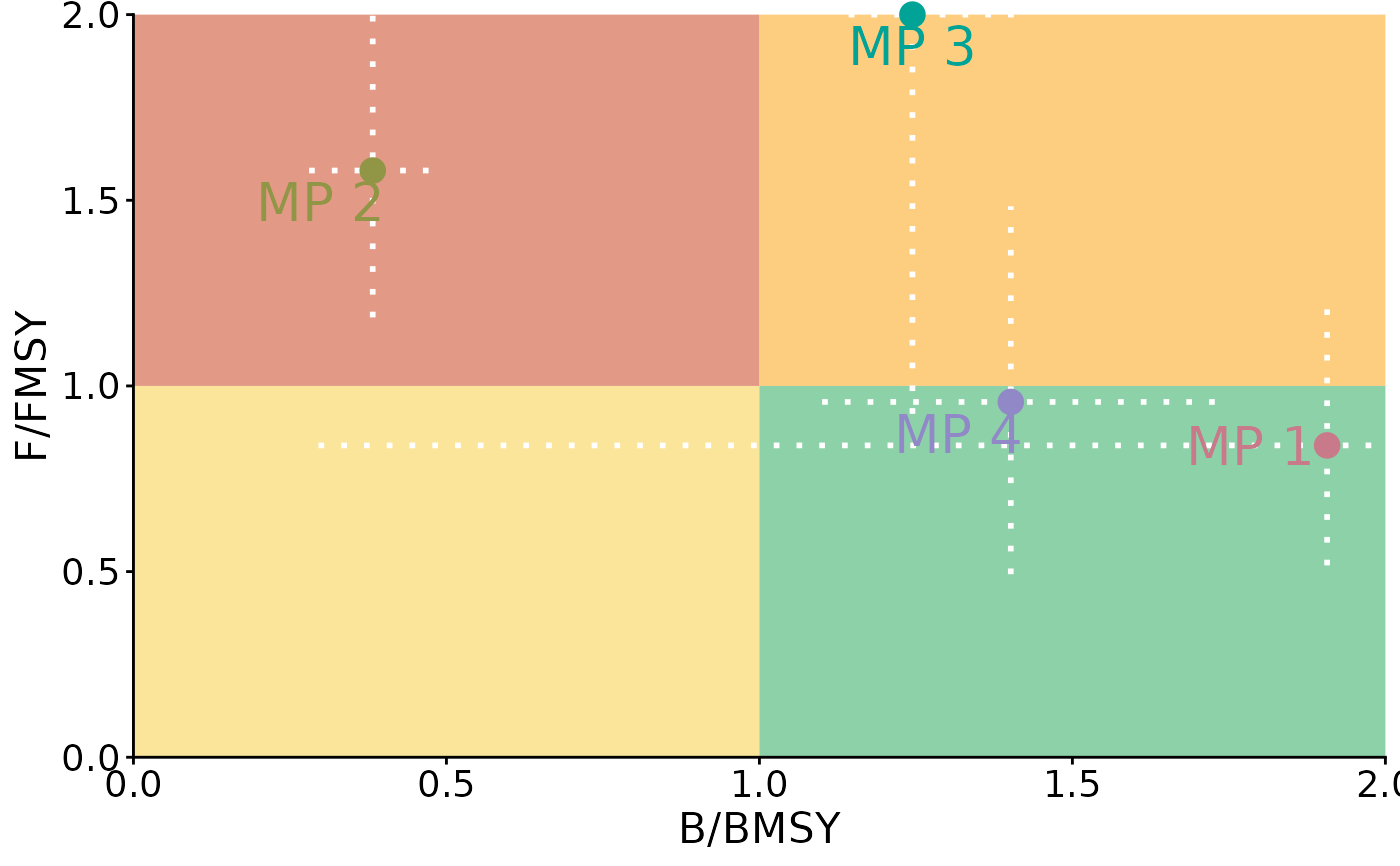

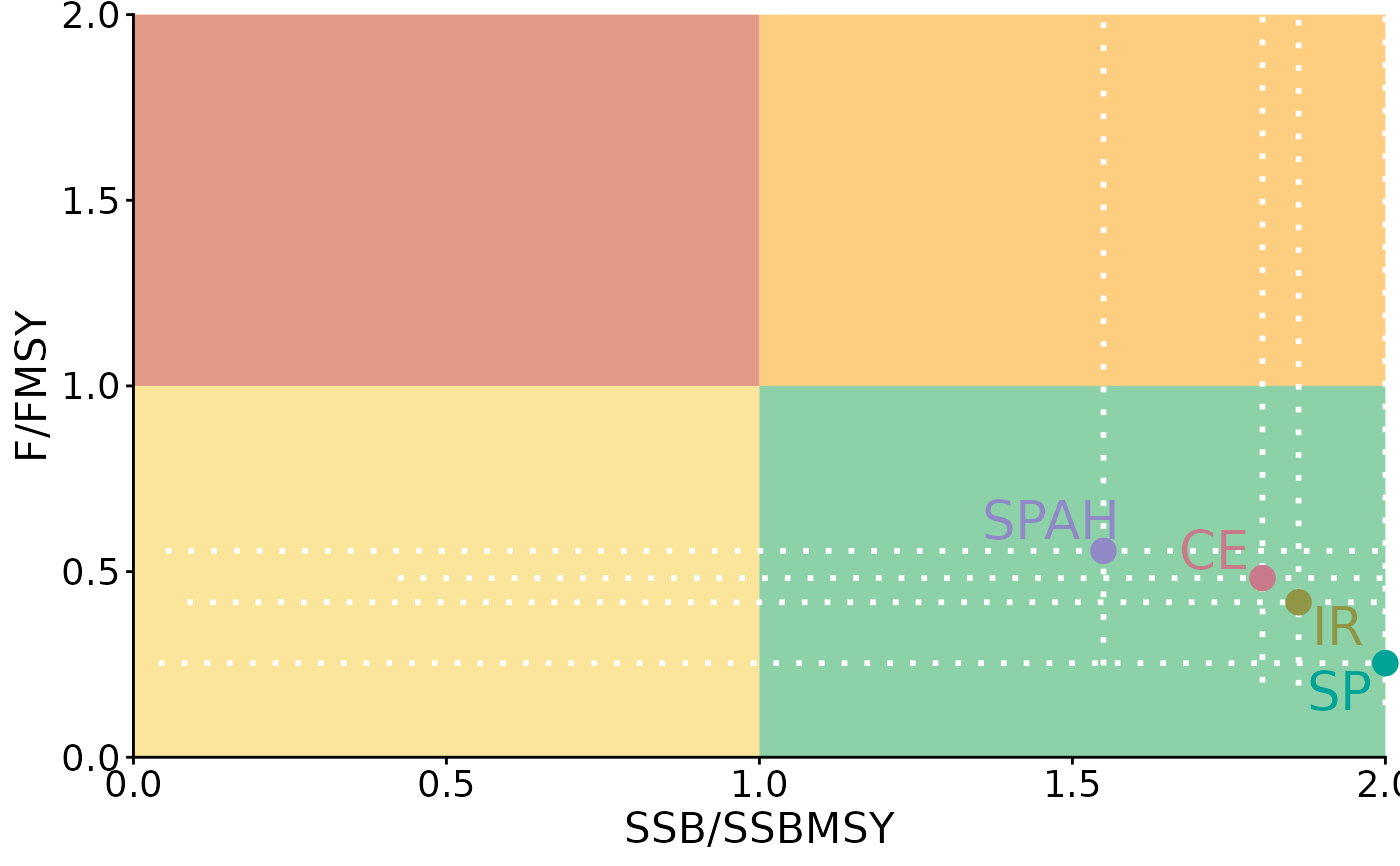

By default, the first PI will be on the x-axis (usually B/BMSY or something similar) and the second on the y-axis (e.g., F/FMSY). The Slick App() provides dropdowns for selecting other PIs.

Multi-Language Support

Text with multi-language supported can be provided as a named list. Available languages:

en: English (default)
es: Spanish
fr: French

Note

Character strings in Code, Label, and Description must all be same length as the number of performance indicators (nPIs) in Value

Slots

Code: A short code for the Performance Indicators for this object. A character string length nPI or a named list for multi-language support. See Details
Label: A short label for the Performance Indicators for this object. Used to label axes on charts. Can be longer than Code but recommended to keep short as possible so it shows clearly in plots and tables. A character string length nPI or a named list for multi-language support. See Details
Description: A description for the Performance Indicators for this object. Can include Markdown, see Examples. A character string length nPI or a named list for multi-language support. See Details
Time: A numeric vector with values for the projection time-steps. Must match length nTS in Value

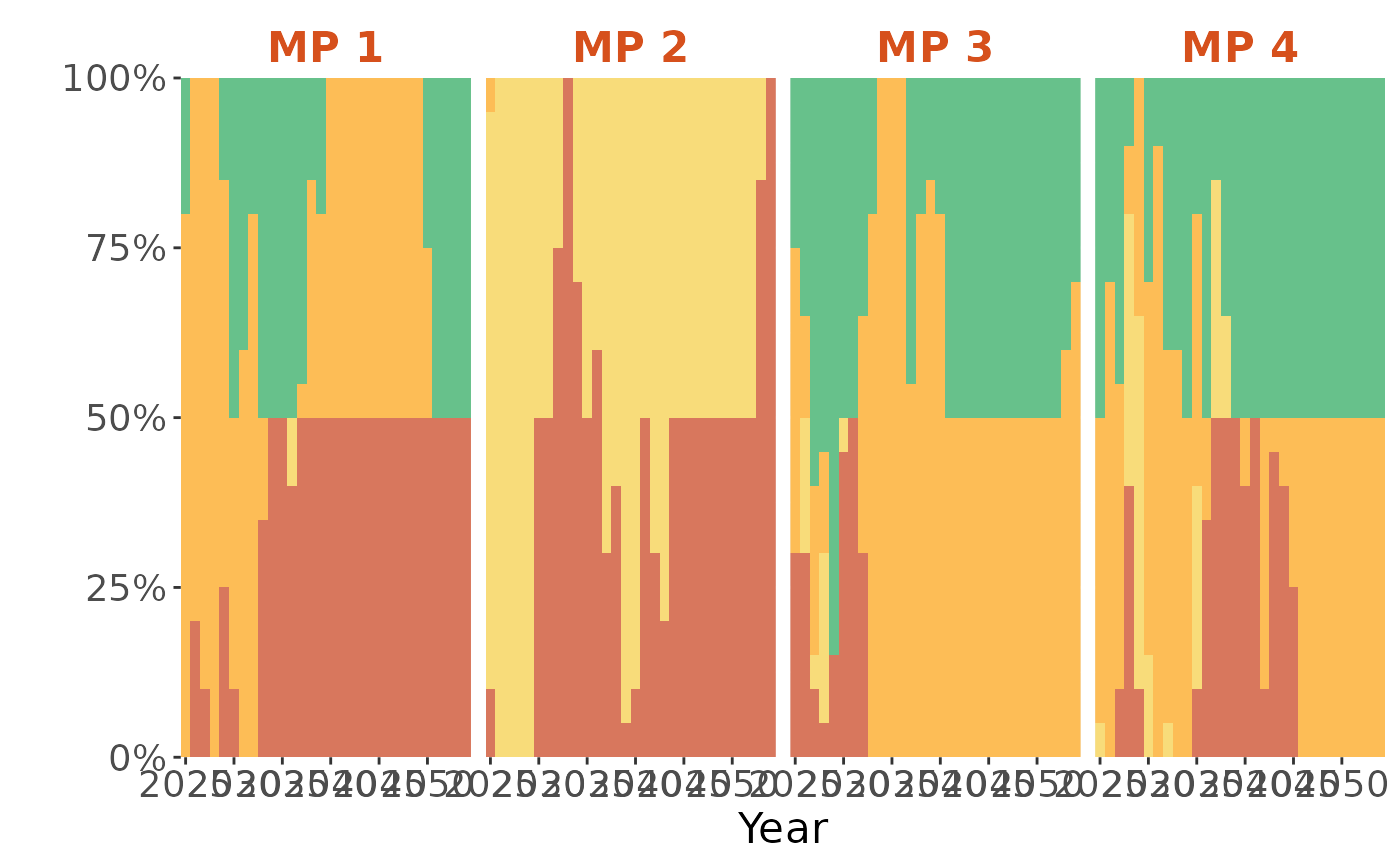

TimeLab: Character string length 1. Name of the time step (e.g., 'Year'). Will be used as the label in the Kobe Time plot. Use a named list for multiple languages.
Value: A numeric array with the stochastic performance indicator values for each simulation (sim), operating model (OM), management procedure (MP), performance indicator (PI), and projection time-steps (nTS) Dimensions: c(nsim, nOM, nMP, nPI, nTS)
Preset: An optional named list for the preset buttons in the App(). The name of the list element will appear as a button in the App().
Target: Numeric vector length nPI with the target value for the PIs. Defines the color quadrants on the Kobe plot. Defaults to 1.
Limit: Numeric vector length nPI with the limit value for the two PIs. Shows as red line on Kobe plot. NULL to ignore.
Defaults: A list object with default selections for the Kobe See Kobe()

Examples

kobe <- Kobe(Code=c('PI1', 'PI2', 'PI3'),
                   Label=c('Performance Indicator 1',
                           'Performance Indicator 2',
                           'Performance Indicator 3'),
                   Description = c('This is the description for PI 1',
                                   'This is the description for PI 2',
                                   'This is the description for PI 3'),
                   Value=array(runif(3000), dim=c(10, 10, 10,3)),
                   Preset=list('PI and P2'=1:2)

)

kobe
#>
#> ── An object of class `Kobe` ───────────────────────────────────────────────────
#>
#> ── `Code` ──
#>
#> 1 PI1
#> 2 PI2
#> 3 PI3
#>
#> ── `Label` ──
#>
#> 1 Performance Indicator 1
#> 2 Performance Indicator 2
#> 3 Performance Indicator 3
#>
#> ── `Description` ──
#>
#> 1 This is the description for PI 1
#> 2 This is the description for PI 2
#> 3 This is the description for PI 3
#>
#> ── `Time` ──
#>
#> ── `TimeLab` ──
#>
#> Year
#>
#> ── `Value` ──
#>
#> Error in data.frame(Dimension = dim_names, Length = dd): arguments imply differing number of rows: 5, 4

# ADD TIME

# Code(boxplot)
# Metadata(boxplot)
#
# # Value(boxplot)
# Value(boxplot) <- array()
#
# Preset(boxplot)
# Preset(boxplot) <- list()
#
# boxplot
