Plots a Kobe plot for a given projection year, or a Kobe Time plot.

Usage

plotKobe(
  slick,
  xPI = 1,
  yPI = 2,
  Time = FALSE,
  BLcol = "#F8DC7A",
  TLcol = "#D8775D",
  TRcol = "#FDBD56",
  BRcol = "#67C18B",
  axis_label = "Code",
  percentile = 0.9,
  axis.text.size = 14,
  axis.title.size = 16,
  strip.text.size = 16,
  strip.text.color = "#D6501C",
  incMP_label = TRUE,
  mp.text.size = 7,
  mp.point.size = 4,
  mp.init.point.size = 2,
  xmax = 2,
  ymax = 2,
  hist_traj = FALSE,
  ncol = 4,
  lang = "en",
  MP_label = "Code"
)

Arguments

slick

A Slick-class() object

xPI

Numeric value specifying the performance indicator for the x-axis

yPI

Numeric value specifying the performance indicator for the y-axis

Time

Logical. Kobe Time plot?

BLcol

Color for the bottom left quadrant

TLcol

Color for the top left quadrant

TRcol

Color for the top right quadrant

BRcol

Color for the bottom right quadrant

axis_label

Label to use for the axes. Either Code or Label. Description works as well, but you probably don't want to do that.

percentile

Numeric value specifying the percentile for the x and y percentile bars. Use NULL to remove percentile lines.

axis.text.size

Font size for axis text

axis.title.size

Font size for axis title

strip.text.size

Font size for facet strip text

strip.text.color

Color for facet strip text

incMP_label

Logical. Include MP labels?

mp.text.size

Font size for MP labels

mp.point.size

Point size for MP labels

mp.init.point.size

Point size for start of trajectory. If hist_traj==TRUE

xmax

Maximum value for the x-axis. Values greater than xmax will be shown at xmax

ymax

Maximum value for the yx-axis. Values greater than ymax will be shown at ymax

hist_traj

Logical. Plot the historical trajectories?

ncol

Numeric. Number of columns for Kobe Time

lang

Optional. Language (if supported in Slick Object). Either 'en', 'es', 'fr'

MP_label

Label to use for the MPs. Either Code or Label. Description works as well, but you probably don't want to do that.

Value

A ggplot2 object

Details

By default plotKobe shows the terminal projection year. TimeTerminal(Kobe) can be used to override this. Use a numeric value indicating the time (must match a value in Time(Kobe)) to use for the Kobe plot.

See also

Kobe(), Kobe-class()

Examples

# Generate dummy values
nsim <- 10
nOM <- 2
nMP <- 4
nPI <- 2
nTS <- 30

values <- array(NA, dim=c(nsim, nOM, nMP, nPI, nTS))

pi_means <- c(1,1)

for (om in 1:nOM) {
  for (mp in 1:nMP) {
    for (pi in 1:nPI) {
      values[,om, mp, pi,] <- pi_means[pi] *
        matrix(
        cumprod(c(rlnorm(nTS*nsim, 0, 0.05))),
        nrow=nsim)
    }
  }
}

# Create and populate Object
kobe <- Kobe(Code=c('B/BMSY', 'F/FMSY'),
             Label=c('B/BMSY',
                     'F/FMSY'),
             Description = c('This is the description for PI 1',
                             'This is the description for PI 2'),
             Value=values
)

# Add values for projection time steps
Time(kobe) <- seq(2025, by=1, length.out=nTS)

# Check
Check(kobe)
#>
#> ── Checking: "Kobe" ──
#>
#> ✔ Complete

# Add to `Slick` object
slick <- Slick()
Kobe(slick) <- kobe

# Plots

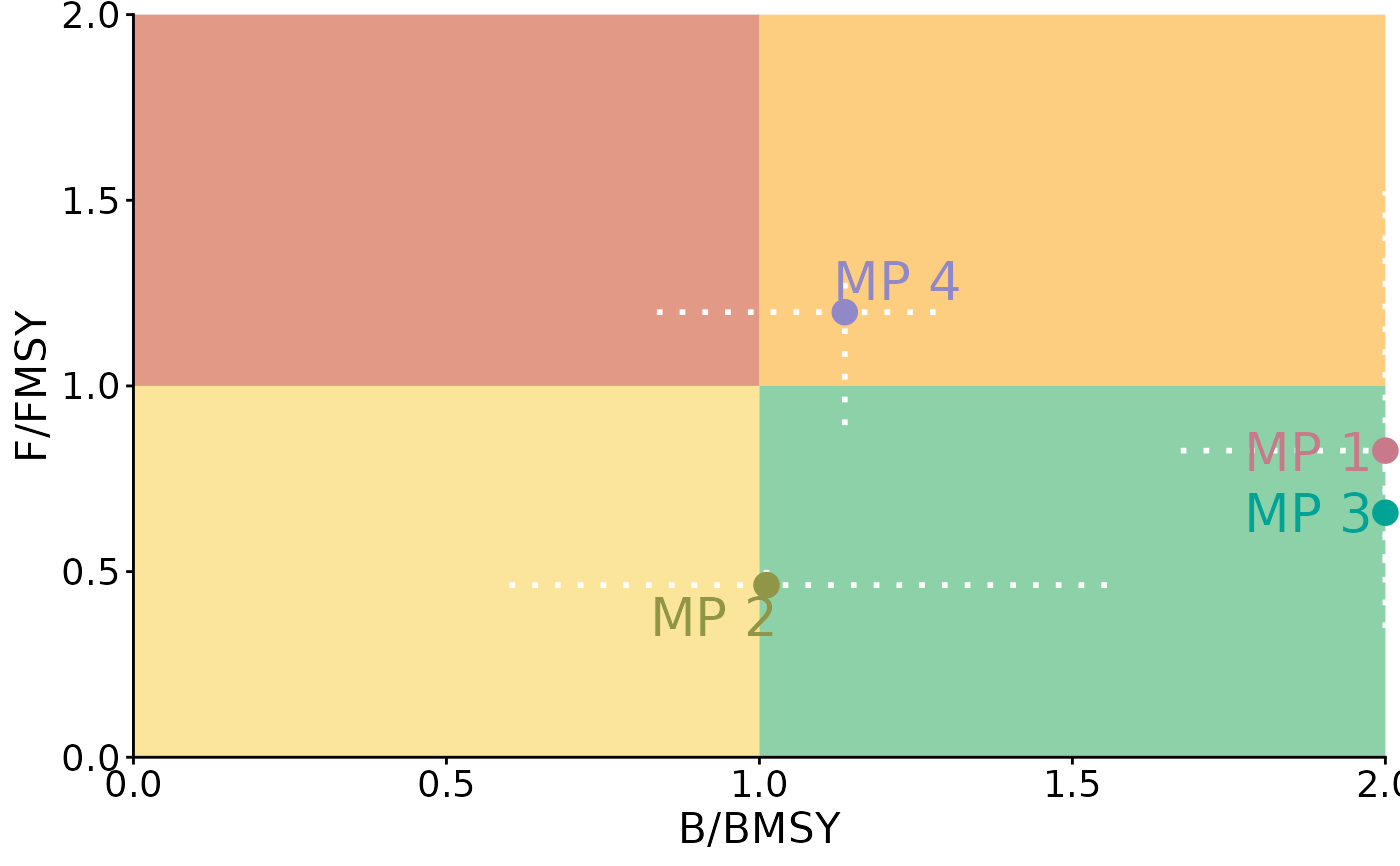

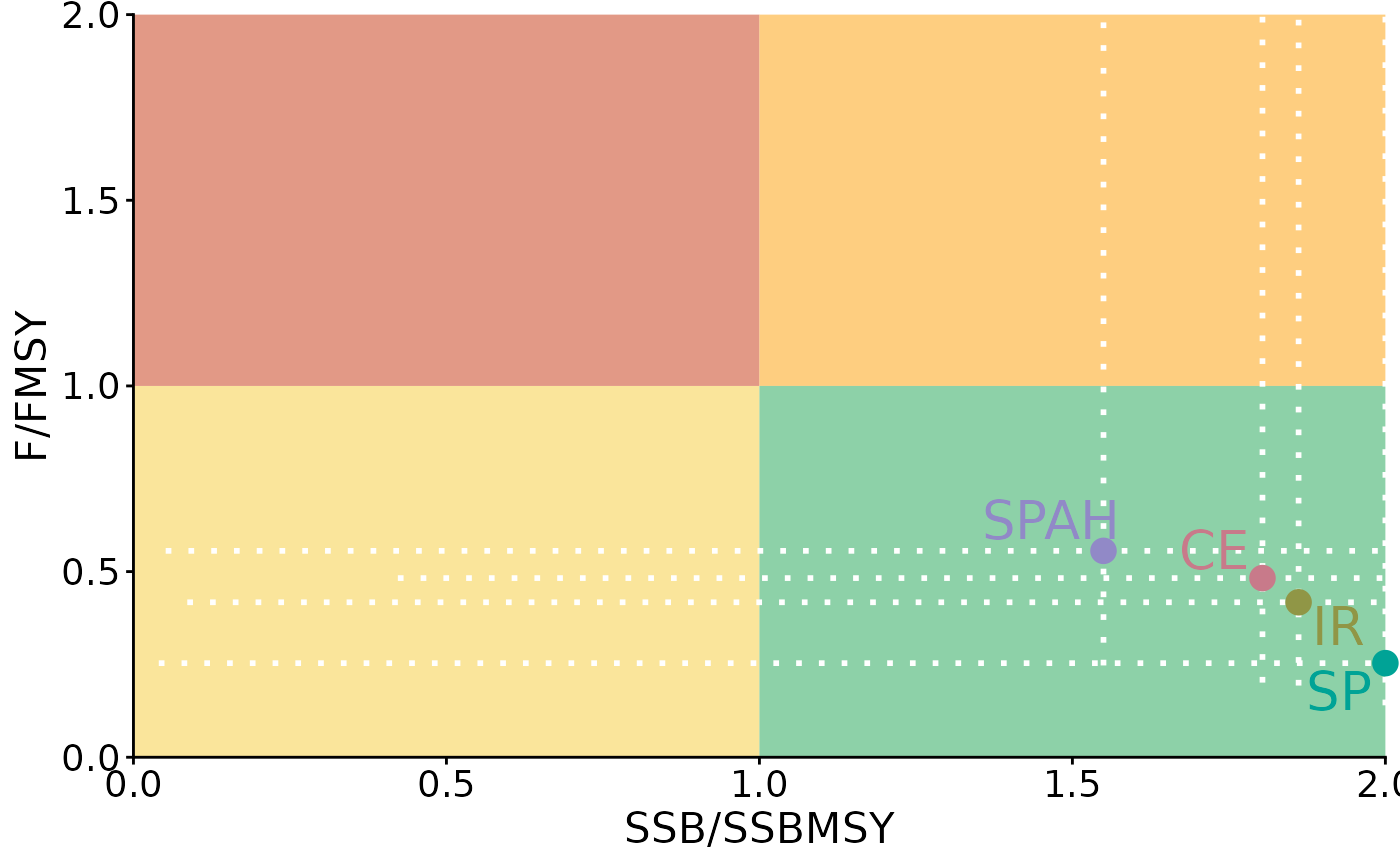

plotKobe(slick)
#> Error in plotKobe(slick): object 'nMP' not found

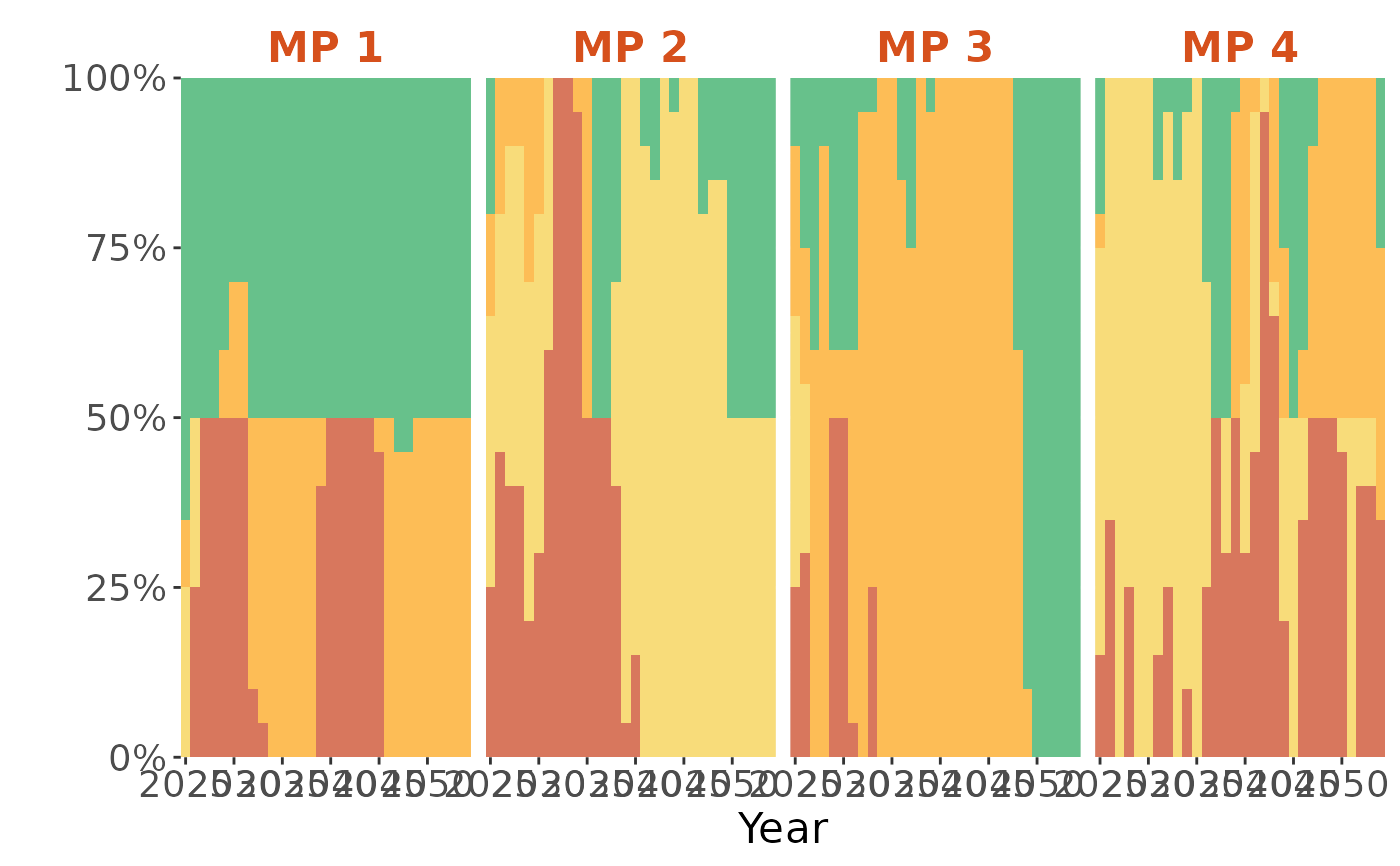

plotKobe(slick, Time=TRUE)
#> Error in plotKobe(slick, Time = TRUE): object 'nMP' not found
