S4 class Spider

Objects of class Spider are used to store information for the Spider plots. Like all S4 objects in Slick, slots in this object can be accessed and assigned using functions corresponding to slot name. See Spider and the the See Also section below.

Details

Objects of class Spider are created with Spider()

Multi-Language Support

Text with multi-language supported can be provided as a named list. Available languages:

• en: English (default)

• es: Spanish

• fr: French

Note

Character strings in Code, Label, and Description must all be same length as the number of performance indicators (nPIs) in Value

Slots

Code

A short code for the Performance Indicators for this object. A character string length nPI or a named list for multi-language support. See Details

Label

A short label for the Performance Indicators for this object. Used to label axes on charts. Can be longer than Code but recommended to keep short as possible so it shows clearly in plots and tables. A character string length nPI or a named list for multi-language support. See Details

Description

A description for the Performance Indicators for this object. Can include Markdown, see Examples. A character string length nPI or a named list for multi-language support. See Details

Value

A numeric array with the stochastic performance indicator values for each operating model (OM), management procedure (MP), and performance indicator (PI). Dimensions: c(nOM, nMP, and nPI). All PI values must range between 0 and 1 or 0 and 100. If all values are <= 1, they will be multiplied by 100 in the plot. Dimensions: c(nOM, nMP, and nPI)

Preset

An optional named list for the preset buttons in the App(). The name of the list element will appear as a button in the App().

Misc

A named list for additional miscellaneous information.

See also

Spider, Code(), Label(), Description(), Value(), Preset()

Examples

# Generate dummy values
nOM <- 2
nMP <- 4
nPI <- 4

values <- array(NA, dim=c(nOM, nMP, nPI))

# Note: PI values must be between 0 and 1, with 1 indicating better performance
pi_means <- runif(nPI, 0, 1)
for (om in 1:nOM) {
  for (mp in 1:nMP) {
    for (pi in 1:nPI) {
      values[om, mp, pi] <- runif(1, pi_means[pi])
    }
  }
}

# Create and populate Object
spider <- Spider(Code=c('PI1', 'PI2', 'PI3', 'PI4'),
               Label=c('Performance Indicator 1',
                       'Performance Indicator 2',
                       'Performance Indicator 3',
                       'Performance Indicator 4'),
               Description = c('This is the description for PI 1',
                               'This is the description for PI 2',
                               'This is the description for PI 3',
                               'This is the description for PI 4'),
               Value=values)

# Check
Check(spider)
#>
#> ── Checking: "Spider" ──
#>
#> ✔ Complete

# Add to `Slick` object
slick <- Slick()
Spider(slick) <- spider

# Plots

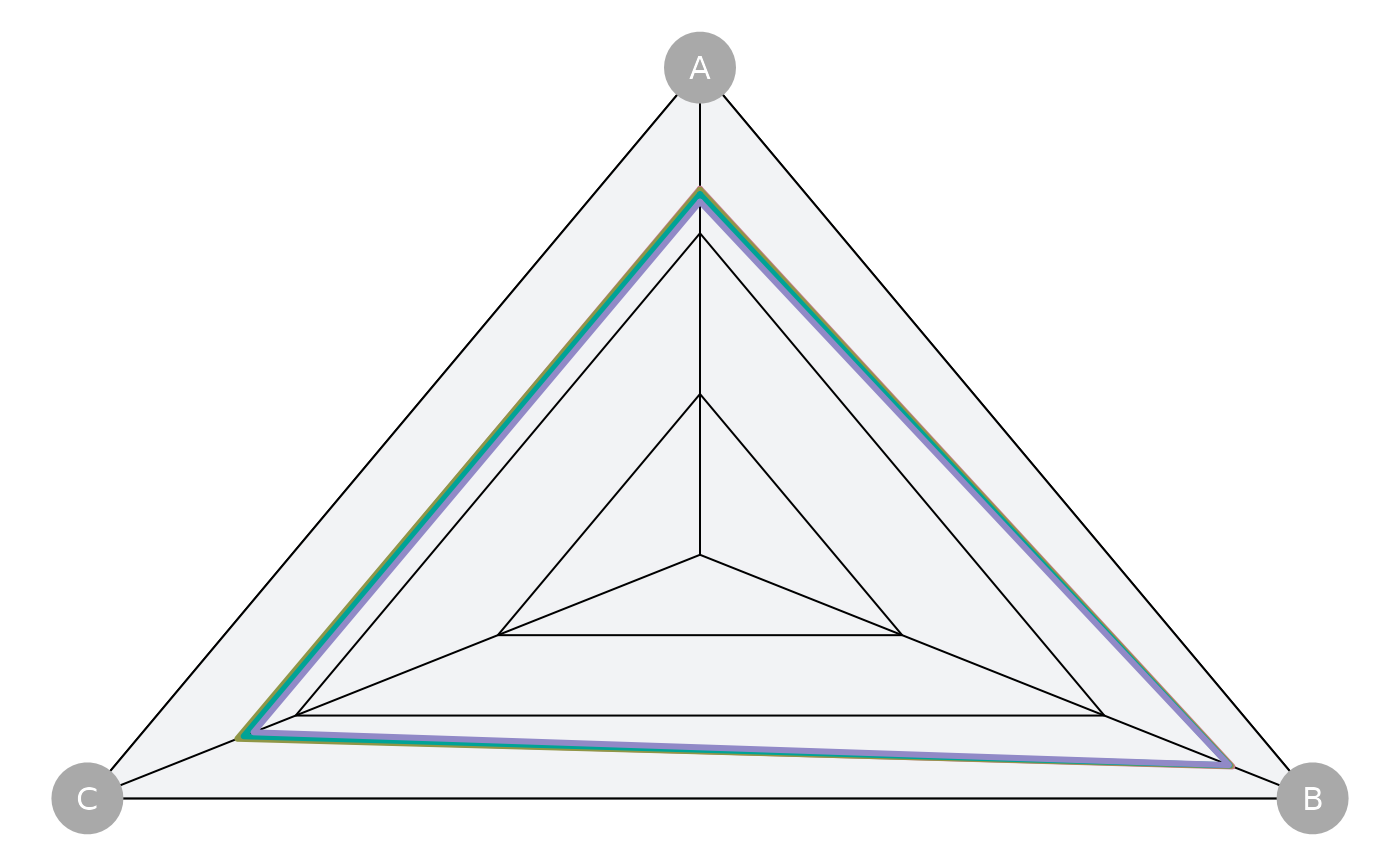

plotSpider(slick)
#> ℹ Note: `MPs` is empty. Using default MP names and colors


plotSpider(slick, fill=TRUE)
#> ℹ Note: `MPs` is empty. Using default MP names and colors


plotSpider(slick, byMP=TRUE)
#> ℹ Note: `MPs` is empty. Using default MP names and colors


plotSpider(slick, byOM=TRUE)
#> ℹ Note: `MPs` is empty. Using default MP names and colors
