Methods for Creating, Accessing and Assigning Spider objects

The Spider function is used both to create and modify an Spider-class() object. and to access and assign Spider for an object of class Slick-class(). See Details.

Usage

Spider(
  Code = "",
  Label = "",
  Description = "",
  Value = array(),
  Preset = list()
)

Spider(Slick) <- value

# S4 method for class 'missing'
Spider()

# S4 method for class 'character'
Spider(
  Code = "",
  Label = "",
  Description = "",
  Value = array(),
  Preset = list()
)

# S4 method for class 'list'
Spider(
  Code = "",
  Label = "",
  Description = "",
  Value = array(),
  Preset = list()
)

# S4 method for class 'Slick'
Spider(Code)

# S4 method for class 'Slick'
Spider(Slick) <- value

Arguments

Code: A short code for the Performance Indicators for this object. A character string length nPI or a named list for multi-language support. See Details
Label: A short label for the Performance Indicators for this object. Used to label axes on charts. Can be longer than Code but recommended to keep short as possible so it shows clearly in plots and tables. A character string length nPI or a named list for multi-language support. See Details
Description: A description for the Performance Indicators for this object. Can include Markdown, see Examples. A character string length nPI or a named list for multi-language support. See Details
Value: A numeric array with the stochastic performance indicator values for each operating model (OM), management procedure (MP), and performance indicator (PI). Dimensions: c(nOM, nMP, and nPI). All PI values must range between 0 and 1 or 0 and 100. If all values are <= 1, they will be multiplied by 100 in the plot.
Preset: An optional named list for the preset buttons in the App(). The name of the list element will appear as a button in the App().
Slick: A Slick-class() object
value: A Spider-class() object

Details

Objects of class Spider are created with Spider()

Use the Code(), Label(), Description(), Value(), Preset() functions to access and assign the values for an existing Spider object, see Examples

Multi-Language Support

Text with multi-language supported can be provided as a named list. Available languages:

en: English (default)
es: Spanish
fr: French

Note

Character strings in Code, Label, and Description must all be same length as the number of performance indicators (nPIs) in `Value

Functions

Spider(missing): Create an empty Spider object
Spider(character): Create a populated Spider object
Spider(list): Create a populated Spider object
Spider(Slick): Return Spider from a Slick-class() object
Spider(Slick) <- value: Assign a Spider-class() object to a Slick-class() object

Examples

# Generate dummy values
nOM <- 2
nMP <- 4
nPI <- 4

values <- array(NA, dim=c(nOM, nMP, nPI))

# Note: PI values must be between 0 and 1, with 1 indicating better performance
pi_means <- runif(nPI, 0, 1)
for (om in 1:nOM) {
  for (mp in 1:nMP) {
    for (pi in 1:nPI) {
      values[om, mp, pi] <- runif(1, pi_means[pi])
    }
  }
}

# Create and populate Object
spider <- Spider(Code=c('PI1', 'PI2', 'PI3', 'PI4'),
               Label=c('Performance Indicator 1',
                       'Performance Indicator 2',
                       'Performance Indicator 3',
                       'Performance Indicator 4'),
               Description = c('This is the description for PI 1',
                               'This is the description for PI 2',
                               'This is the description for PI 3',
                               'This is the description for PI 4'),
               Value=values)

# Check
Check(spider)
#>
#> ── Checking: "Spider" ──
#>
#> ✔ Complete

# Add to `Slick` object
slick <- Slick()
Spider(slick) <- spider

# Plots

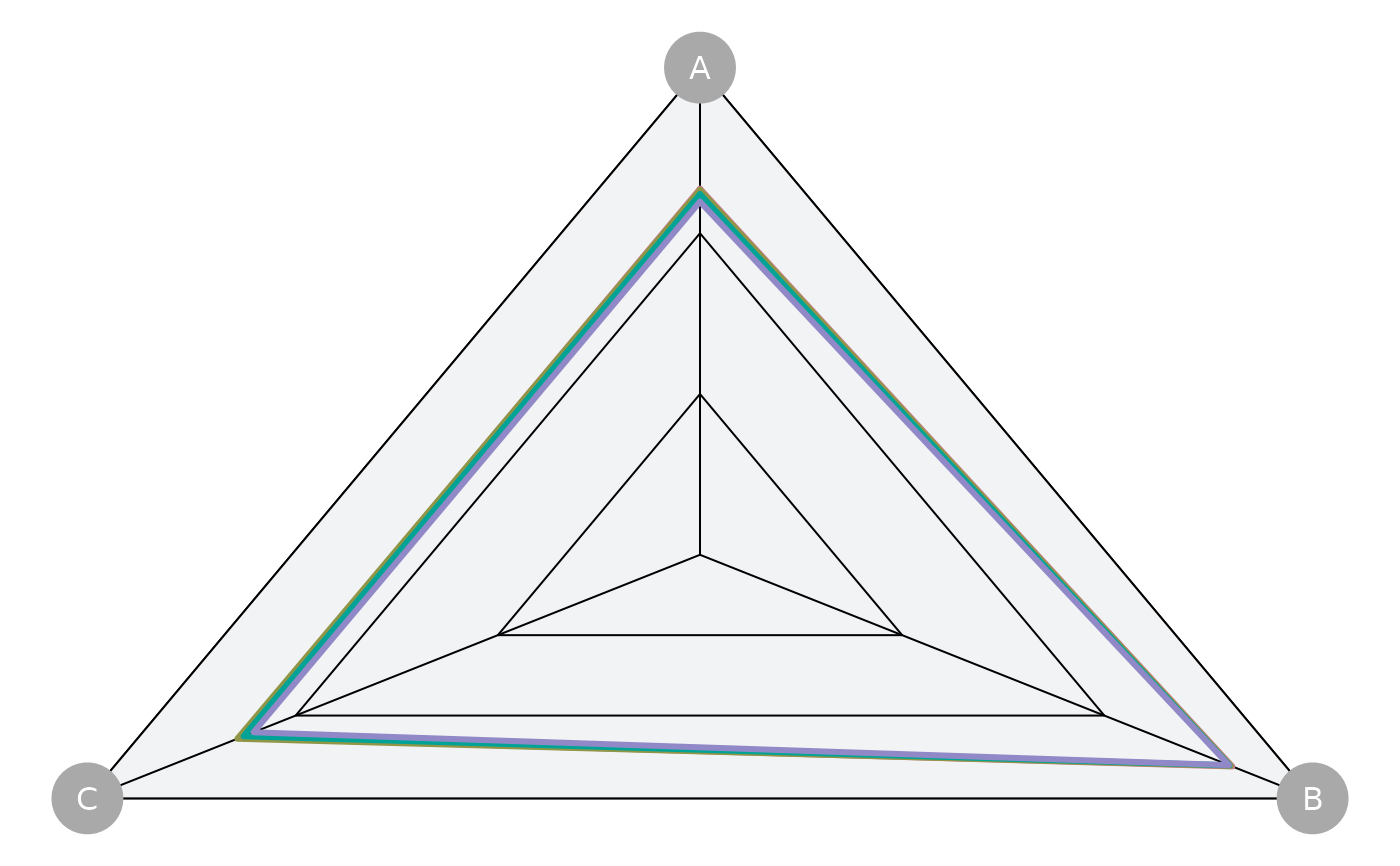

plotSpider(slick)
#> ℹ Note: `MPs` is empty. Using default MP names and colors


plotSpider(slick, fill=TRUE)
#> ℹ Note: `MPs` is empty. Using default MP names and colors


plotSpider(slick, byMP=TRUE)
#> ℹ Note: `MPs` is empty. Using default MP names and colors


plotSpider(slick, byOM=TRUE)
#> ℹ Note: `MPs` is empty. Using default MP names and colors
