Plot Timeseries

Plot the historical and projected values for a performance indicator.

Usage

plotTimeseries(
  slick,
  PI = 1,
  byMP = FALSE,
  byOM = FALSE,
  includeHist = TRUE,
  ncol = 4,
  col_line = "darkgray",
  includeQuants = TRUE,
  includeLabels = TRUE,
  fill_ribbon1 = "#ededed",
  col_ribbon1 = "#ededed",
  quants1 = c(0.25, 0.75),
  alpha1 = 0.3,
  fill_ribbon2 = "white",
  col_ribbon2 = "#c9c9c9",
  linetype_ribbon2 = "dashed",
  quants2 = c(0.1, 0.9),
  alpha2 = 0.1,
  MP_label = "Code",
  size.title = 18,
  size.axis.title = 18,
  size.axis.text = 16,
  size.mp.label = 6,
  targ_color = "green",
  targ_name = "Target",
  lim_color = "red",
  lim_name = "Limit",
  inc_y_label = TRUE,
  sims = NULL,
  lang = "en"
)

Arguments

slick

A Slick-class() object

PI

A numeric value specifying the performance indicator to plot

byMP

Logical. Facet by MP? Defaults to FALSE, where all MPs are shown on the same plot

byOM

Logical. Facet by OM? Defaults to FALSE where values are calculated as mean across OMs

includeHist

Logical. Include the historical period in the projections?

ncol

Numeric. Number of columns if faceting by MP or OM

col_line

Color for the median line (historical)

includeQuants

Logical. Include quantile shading for the projections?

includeLabels

Logical. Include MP labels?

fill_ribbon1

Fill color for the inner ribbon

col_ribbon1

Color of the line for inner ribbon

quants1

Quantiles for the inner ribbon. Numeric length 2

alpha1

Alpha for the colored MPs inner shading

fill_ribbon2

Fill color for the outer ribbon

col_ribbon2

Color of the line for outer ribbon

linetype_ribbon2

Line type for outer ribbon

quants2

Quantiles for the outer ribbon. Numeric length 2.

alpha2

Alpha for the colored MPs outer shading

MP_label

Label to use for the MPs. Either Code or Label. Description works as well, but you probably don't want to do that.

size.title

Numeric length 1. Size for plot title

size.axis.title

Numeric length 1. Size for axis title

size.axis.text

Numeric length 1. Size for axis text

size.mp.label

Numeric length 1. Size of MP labels. Set to NULL for no MP labels

targ_color

Color for the target line (if it exists in Target(Timeseries(slick)))

targ_name

Label for the target line

lim_color

Color for the limit line (if it exists in Limit(Timeseries(slick)))

lim_name

Label for the limit line

inc_y_label

Include the label for the y-axis?

sims

Optional. Numeric values indicating the simulations to include. Defaults to all.

lang

Optional. Language (if supported in Slick Object). Either 'en', 'es', 'fr'

Value

A ggplot2 object

Details

If byOM==FALSE the results are shown as the mean across operating models.

See also

Timeseries(), Timeseries-class()

Examples

# Generate dummy values
nsim <- 10
nOM <- 2
nMP <- 4
nPI <- 3
nHistTS <- 50
nProjTS <- 30
nTS <- nHistTS + nProjTS

values <- array(NA, dim=c(nsim, nOM, nMP, nPI, nTS))

pi_means <- c(1,1, 1000)

for (om in 1:nOM) {
  for (pi in 1:nPI) {
    # PI identical for historical
    histVals <- matrix(
      pi_means[pi] *
        cumprod(c(rlnorm(nHistTS*nsim, 0, 0.05))),
      nrow=nsim, ncol=nHistTS, byrow=TRUE)
    histVals <- replicate(nMP, histVals)
    values[,om, , pi,1:nHistTS] <- aperm(histVals, c(1,3,2))

    for (mp in 1:nMP) {
      values[,om, mp, pi,(nHistTS+1):nTS] <- matrix(
        pi_means[pi] *
          cumprod(c(rlnorm(nProjTS*nsim, 0, 0.05))),
        nrow=nsim, ncol=nProjTS, byrow=TRUE)
    }
  }
}

# Create and populate Object
timeseries <- Timeseries(Code=c('B/BMSY', 'F/FMSY', 'TAC'),
                         Label=c('B/BMSY',
                                 'F/FMSY',
                                 'TAC'),
                         Description = c('This is the description for PI 1',
                                         'This is the description for PI 2',
                                         'This is the description for PI 3'),
                         Value=values
)

# Last historical time step
TimeNow(timeseries) <- 2024

# Add values for time steps
Time(timeseries) <- c(seq(TimeNow(timeseries), by=-1, length.out=nHistTS),
                      seq(TimeNow(timeseries)+1, by=1, length.out=nProjTS))

# Check
Check(timeseries)
#>
#> ── Checking: "Timeseries" ──
#>
#> ✔ Complete

# Add to `Slick` object
slick <- Slick()
Timeseries(slick) <- timeseries

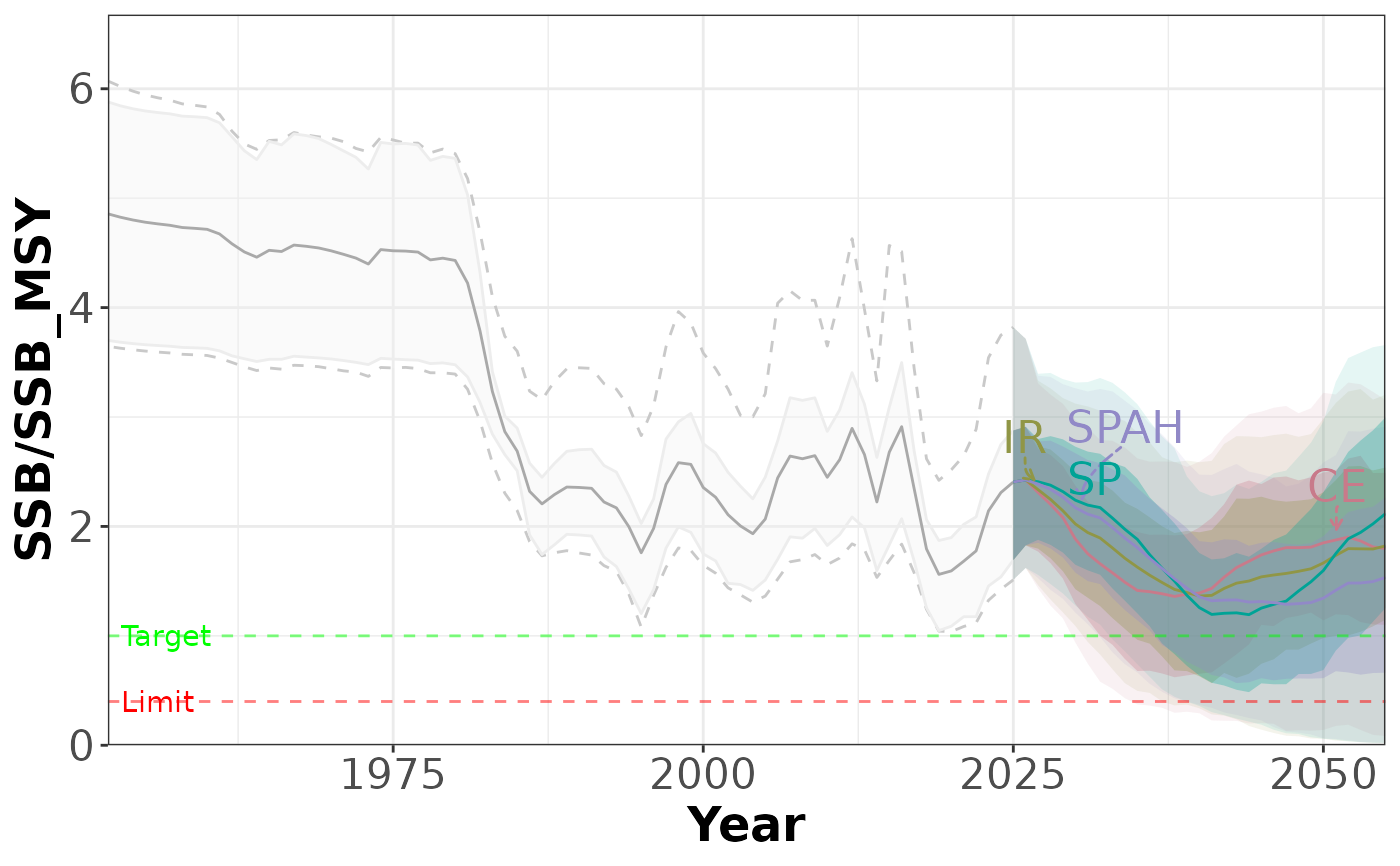

# Plots

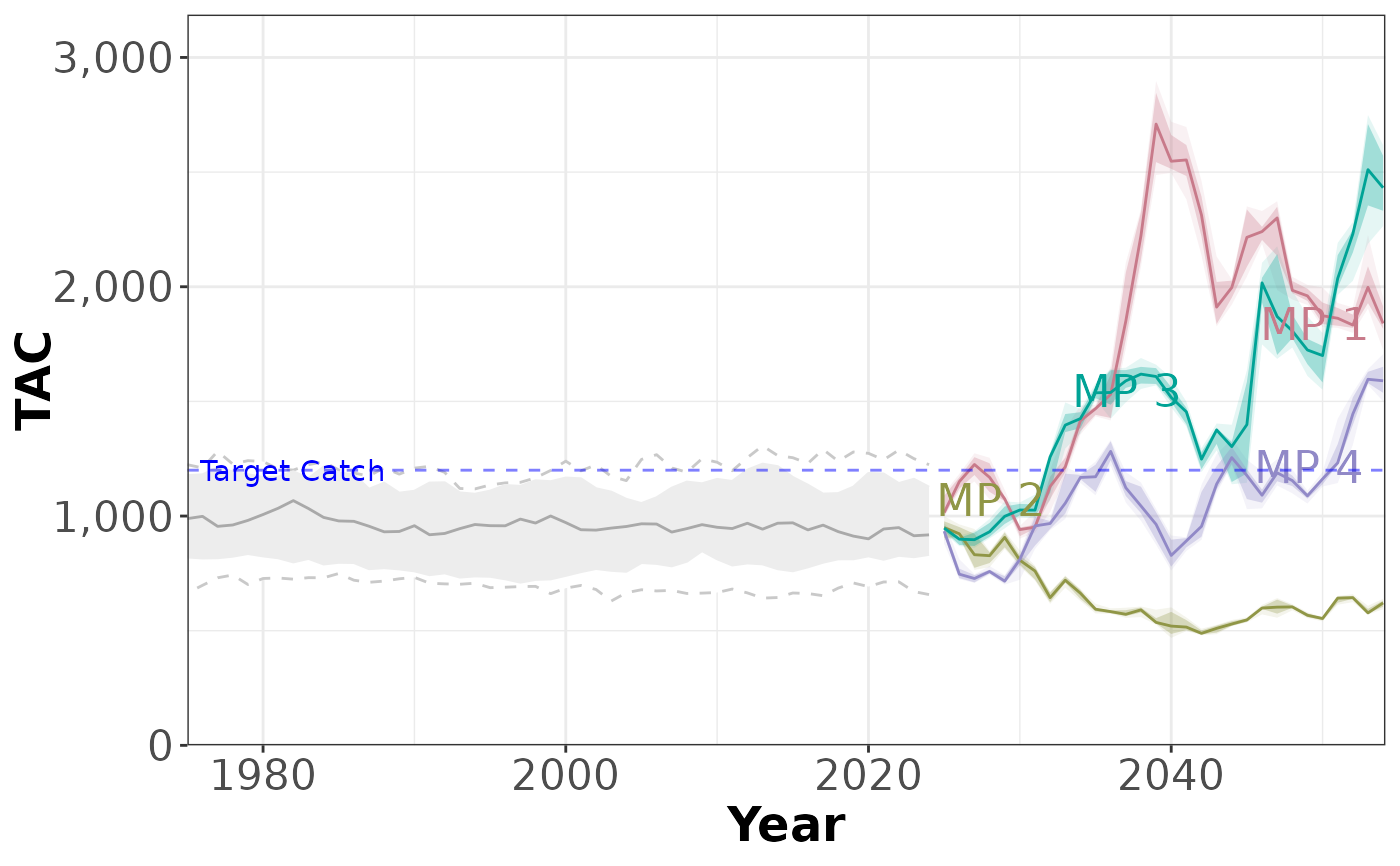

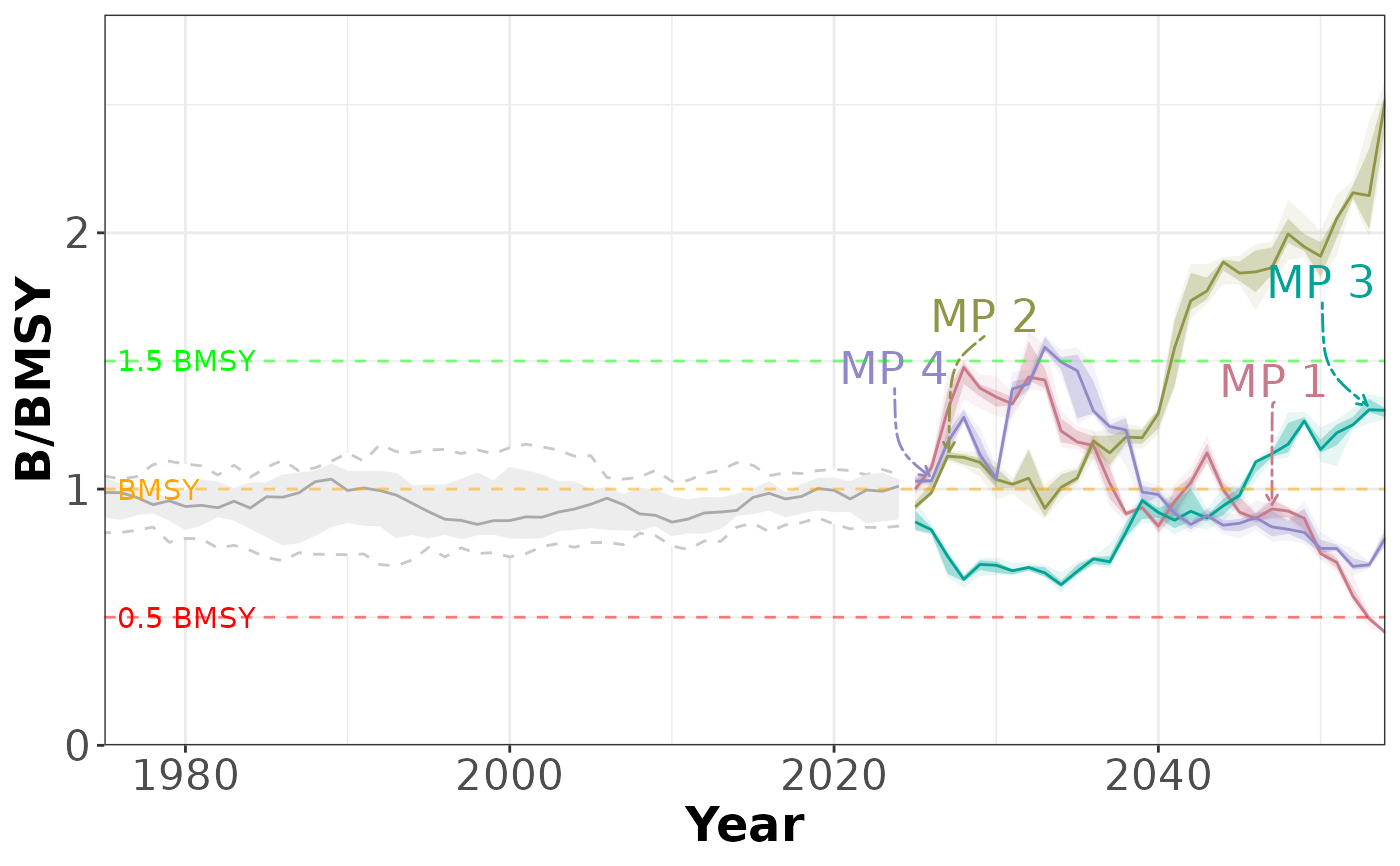

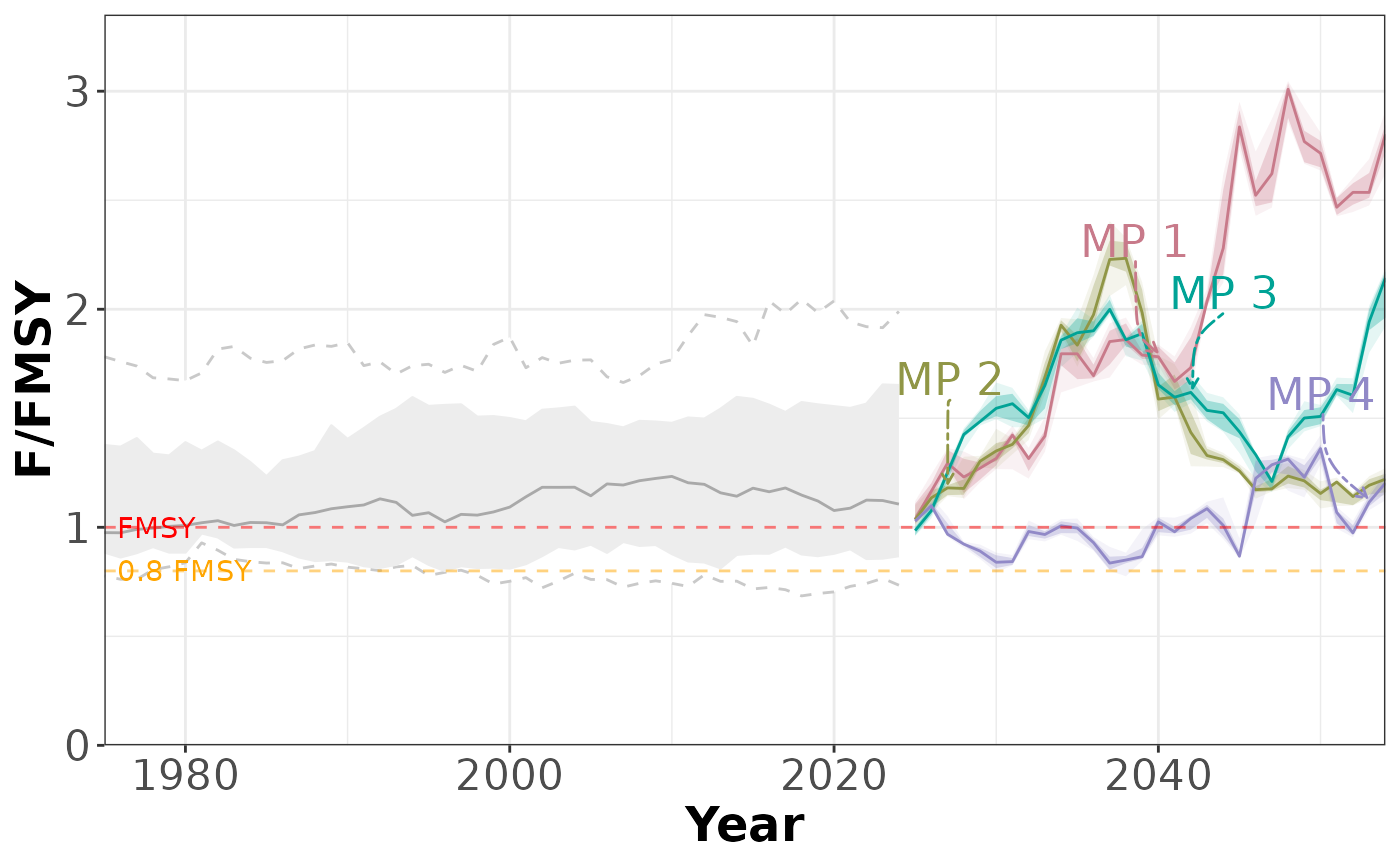

plotTimeseries(slick, 3)
#> ℹ Note: `MPs` is empty. Using default MP names and colors

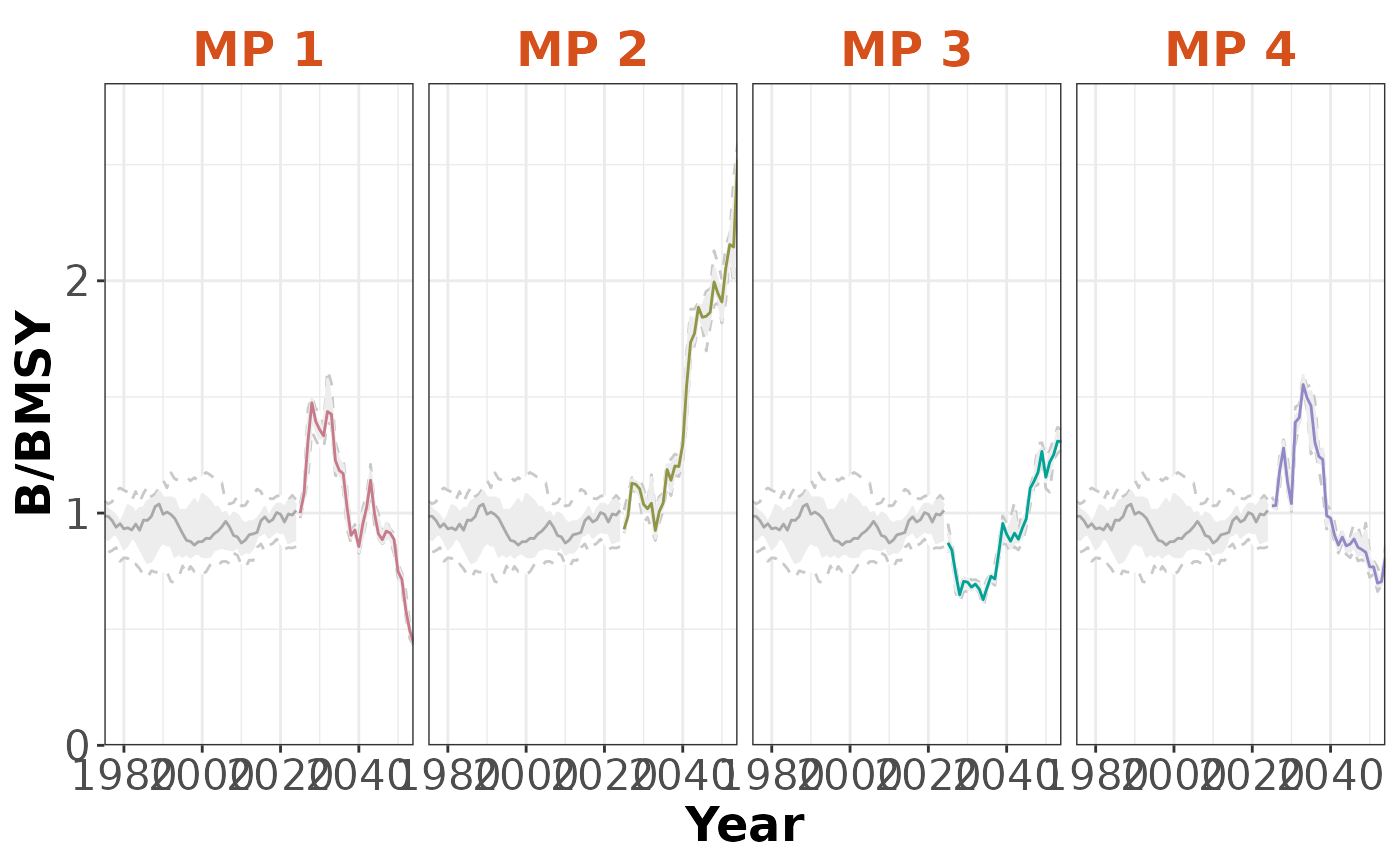

plotTimeseries(slick, byMP=TRUE)
#> ℹ Note: `MPs` is empty. Using default MP names and colors

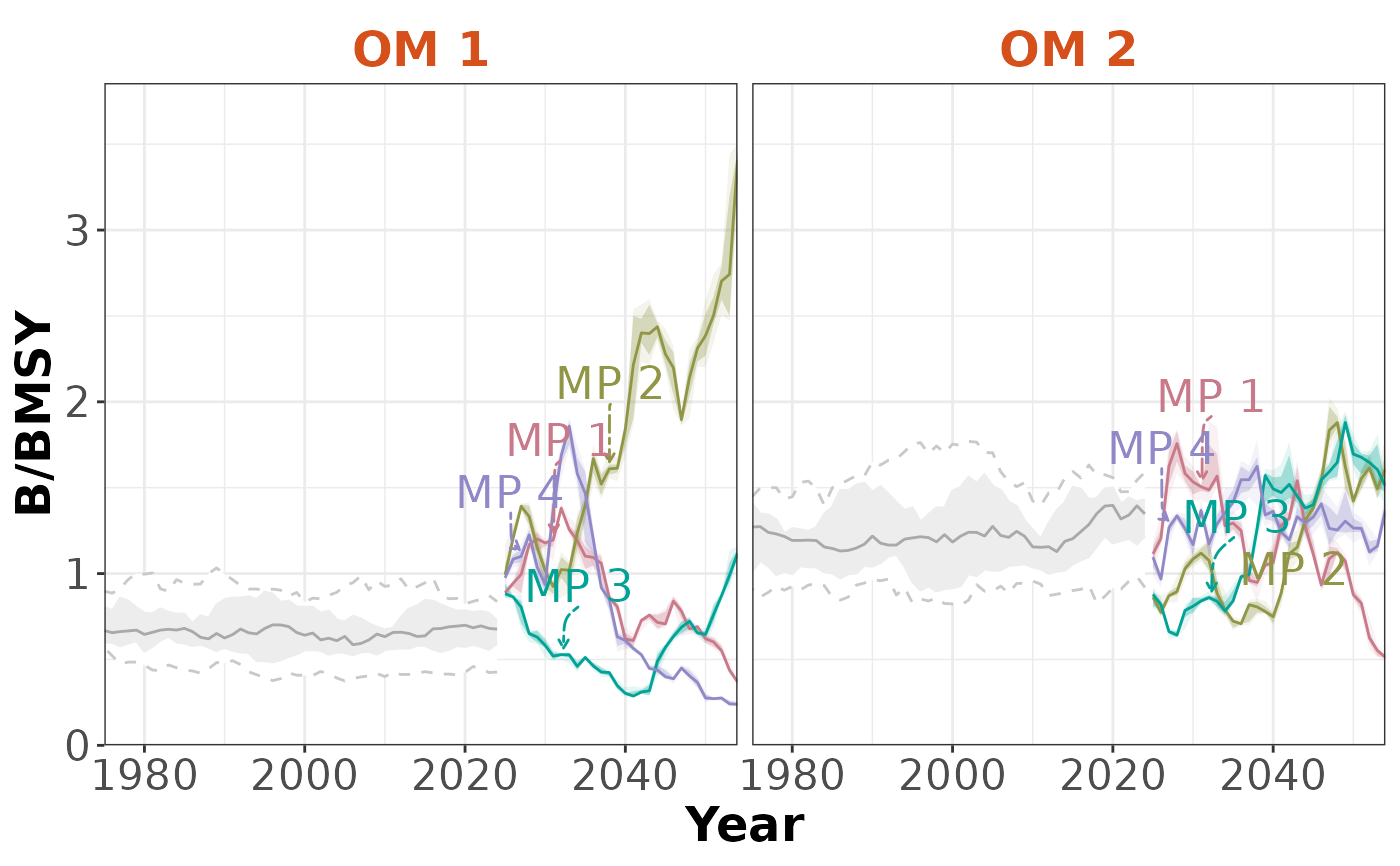

plotTimeseries(slick, byOM=TRUE)
#> ℹ Note: `MPs` is empty. Using default MP names and colors
